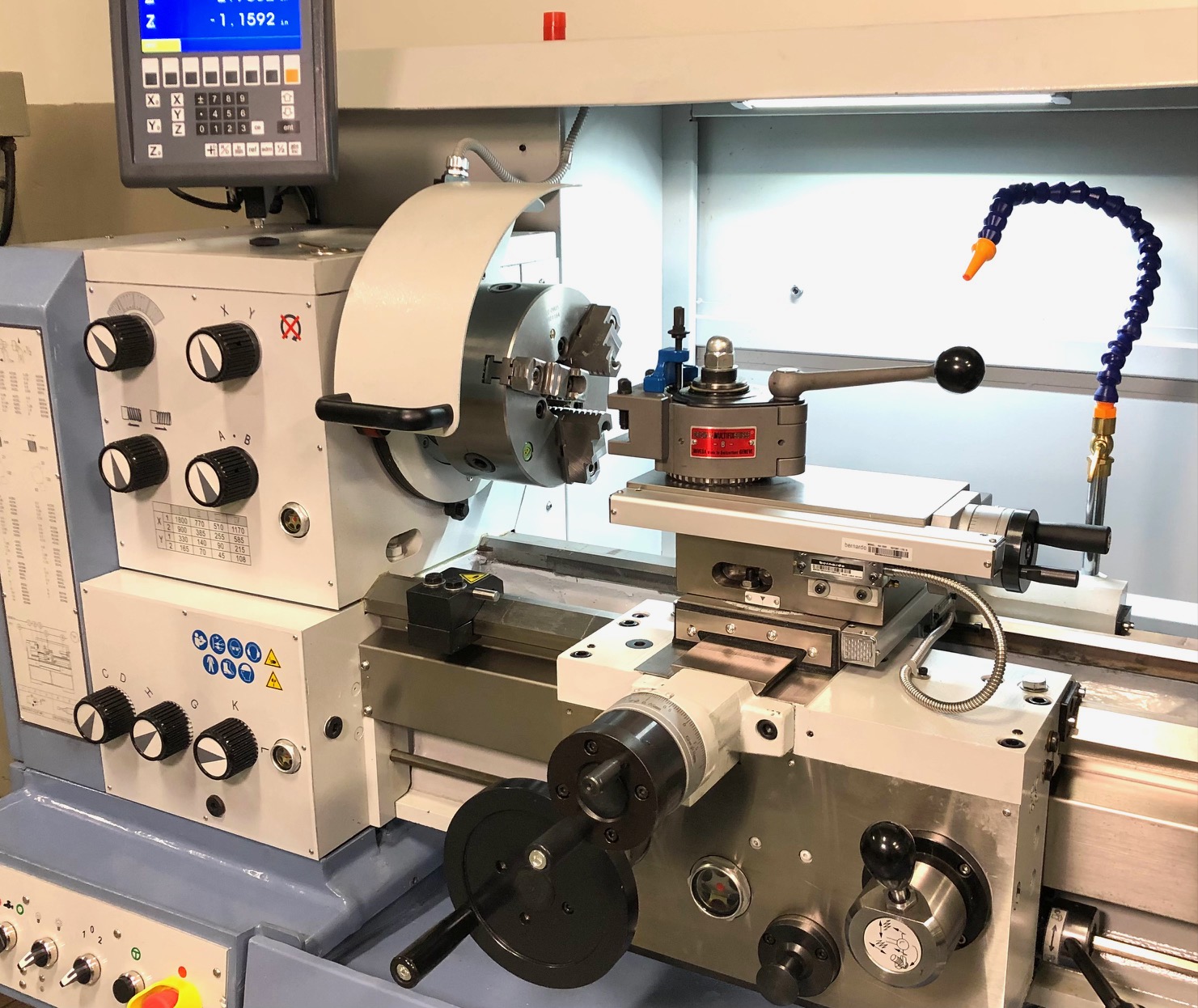

Demo model, Bernardo Compact 400 toolroom lathe. Bernardo is an Austrian company that designed this particular model as a close copy of a late model Weiler Pratikant .

It is also nearly identical to the (German) GDW model LZ360S. The lathe was made in 2020 and used one hour at most. See below for features and specs. Voltage is European standard 400 volts 3 phase.

(new 230-400 volt 3P, 15 kva transformer available for $650 with machine)

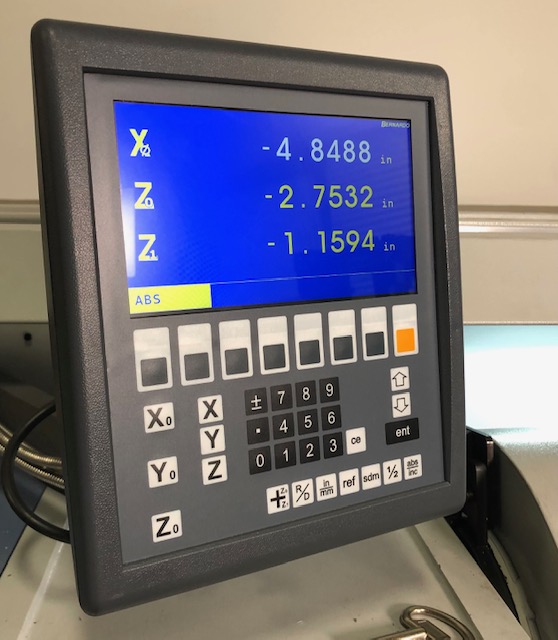

Dials are metric. High definition color DRO displays (3 axis...incl compound) in inches or metric.

See video at: https://vimeo.com/772861928

Features

1. Rigid prism-shaped bed features additional reinforcements to keep vibrations to a minimum
2. Various possible applications in general machine construction, production, single part manufacturing etc.
3. Easy, smooth and precisely adjustable speed and feed settings

Technical specifications

1. Distance between centers: 34"
2. Center height: 7.9"
3. Swing over bed: 15.75"
4. Swing over cross slide: 9.65"
5. Bed width: 10.25"
6. Spindle bore: 2.1"
7. Spindle nose: D1-5
8. Speed range: (16) 45 - 1800 rpm
9. Longitudinal feed: (20) 0,025 - 2 mm/rev.
10. Cross feed: (20) 0,012 - 1 mm/rev.
11. Metric thread: (26) 0,2 - 14 mm
12. Inch thread: (42) 1 - 80 threads/1"
13. Diameter of tailstock sleeve: 50 mm
14. Machine power input: 400V / 3phase
15. Taper of tailstock sleeve: MT 3
16. Motor power: 3,0 / 4,5 kW
17. Machine dimension (W x D x H) 75" x 40" x 64" tall
18. Weight approx.: 2,760 lbs

Standard accessories

3-axis digital readout ES-12 V with LCD display

3-jaw chuck 8" D5 with reversable jaws

Face plate 12"

Steady rest - Passage up to max. 5"

Follow rest - Passage up to max. 4"

Coolant device

40 pos. tool post and holder set with 4 inserts

Protective device at tool holder

Micrometer longitudinal fence

Safety clutch

Motor with magnetic brake according to CE

Extractable chip tray

LED machine light

Morse taper drill sleeve

2 dead centers

Splash guard

Tools

Modern bearing of main spindle with angular ball bearing in precision construction

Hardened and ground gears and shafts, even in feed gear unit

Central and easy coupling of feeds and threads with leadscrew and feed rod

The machine bed is made of one piece, it is warp resistant and vibration-free which enables precise turning

Chip tray extracts to front, keeping space requirements to a minimum
