Quality Machine Tools Quality Machine Tools| Product Number | 106 |
| Manufacturer | Bernardo |
| Model | Compact 400 |
| Year | 2020 |
| Product | Bernardo |
| Description | Beautiful toolroom lathe with accessories and 3 axis DRO |
| Price | $16,500 |

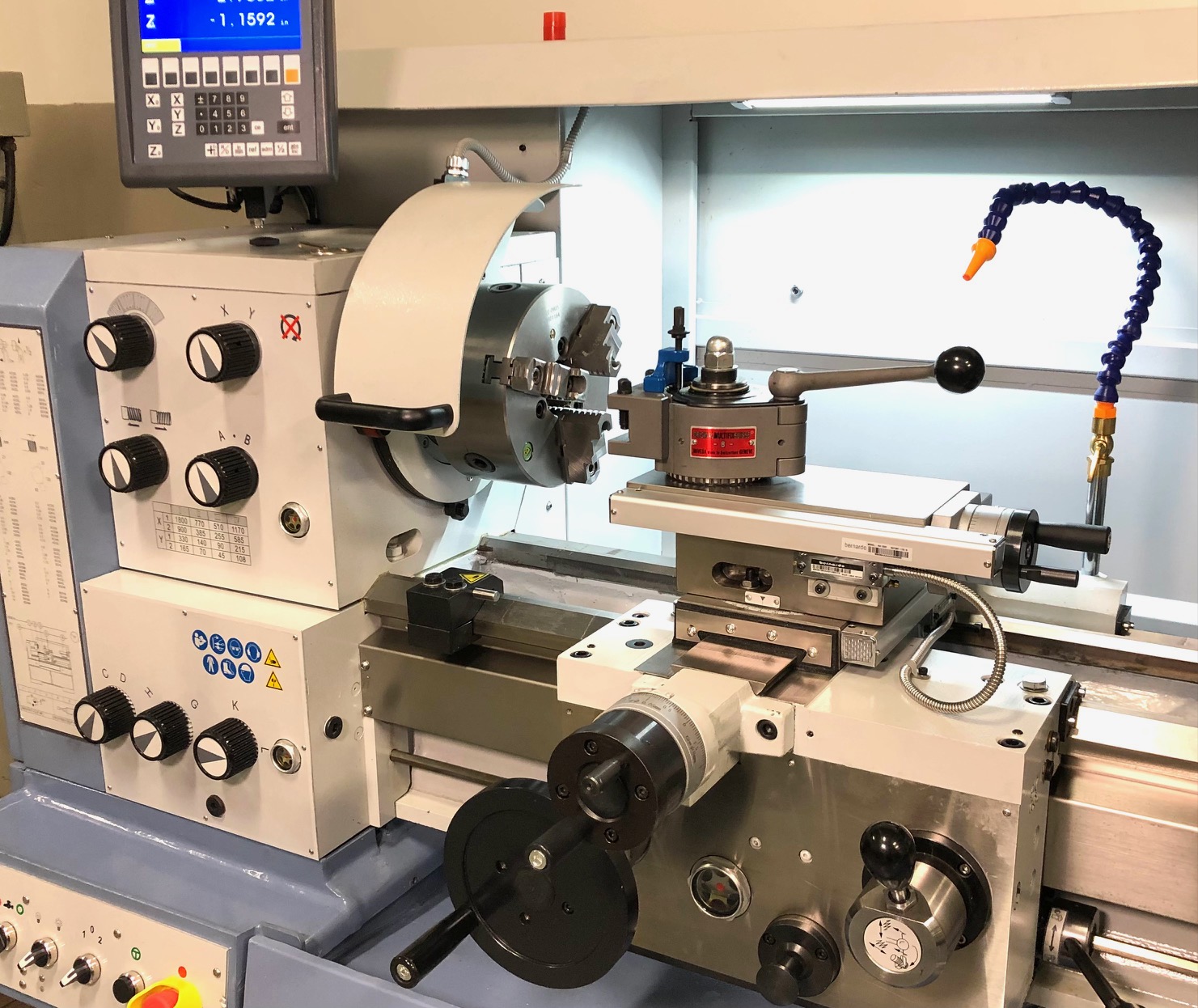

| Demo model, Bernardo Compact 400 toolroom lathe. Bernardo is an Austrian company that designed this particular model as a close copy of a late model Weiler Pratikant .

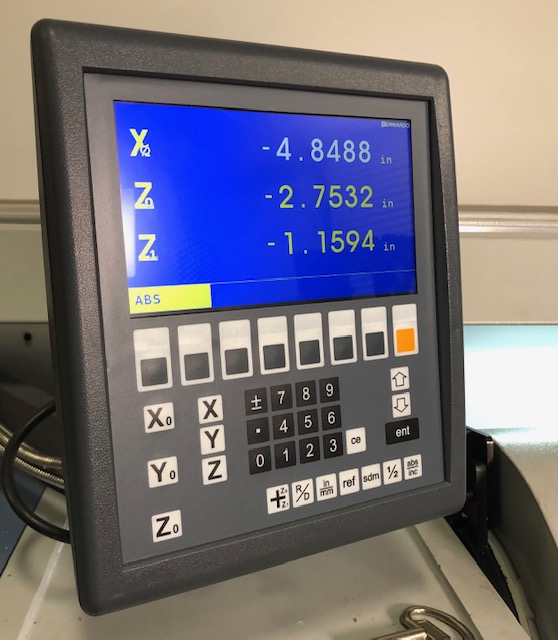

It is also nearly identical to the (German) GDW model LZ360S. The lathe was made in 2020 and used one hour at most. See below for features and specs. Voltage is European standard 400 volts 3 phase. (new 230-400 volt 3P, 15 kva transformer available for $650 with machine) Dials are metric. High definition color DRO displays (3 axis...incl compound) in inches or metric. See video at - https://vimeo.com/772861928 Features Rigid prism-shaped bed features additional reinforcements to keep vibrations to a minimum Various possible applications in general machine construction, production, single part manufacturing etc. Easy, smooth and precisely adjustable speed and feed settings Technical specifications Distance between centers 34” Center height 7.9” Swing over bed 15.75” Swing over cross slide 9.65” Bed width 10.25” Spindle bore 2.1” Spindle nose D1-5 Speed range (16) 45 - 1800 rpm Longitudinal feed (20) 0,025 - 2 mm/rev. Cross feed (20) 0,012 - 1 mm/rev. Metric thread (26) 0,2 - 14 mm Inch thread (42) 1 - 80 threads/1“ Diameter of tailstock sleeve 50 mm Machine power input 400V / 3phase Taper of tailstock sleeve MT 3 Motor power 3,0 / 4,5 kW Machine dimension (W x D x H) 75" x 40" x 64" tall Weight approx. 2,760 lbs Standard accessories 3-axis digital readout ES-12 V with LCD display 3-jaw chuck 8” D5 with reversable jaws Face plate 12” Steady rest - Passage up to max. 5” Follow rest - Passage up to max. 4” Coolant device 40 pos. tool post and holder set with 4 inserts Protective device at tool holder Micrometer longitudinal fence Safety clutch Motor with magnetic brake according to CE Extractable chip tray LED machine light Morse taper drill sleeve 2 dead centers Splash guard Tools Modern bearing of main spindle with angular ball bearing in precision construction Hardened and ground gears and shafts, even in feed gear unit Central and easy coupling of feeds and threads with leadscrew and feed rod The machine bed is made of one piece, it is warp resistant and vibration-free which enables precise turning Chip tray extracts to front, keeping space requirements to a minimum |
