Quality Machine Tools Quality Machine Tools| Product Number | 100 |
| Manufacturer | Schaublin |
| Model | 150 |
| Year | 1988 |
| Product | lathe |
| Description | The ultimate toolroom lathe |
| Price | $58,500 |

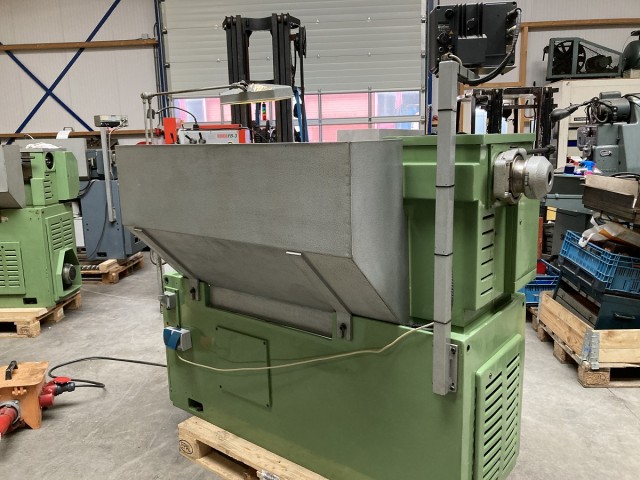

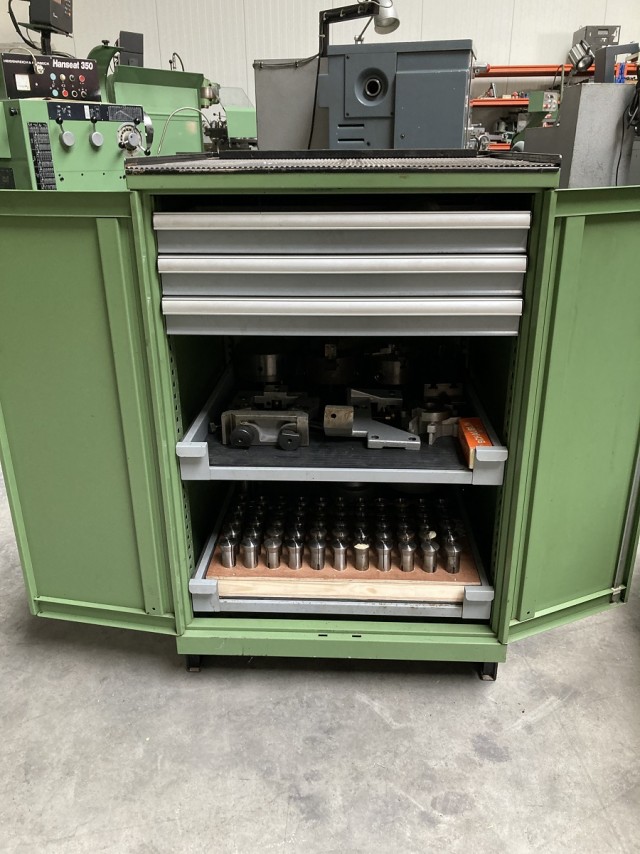

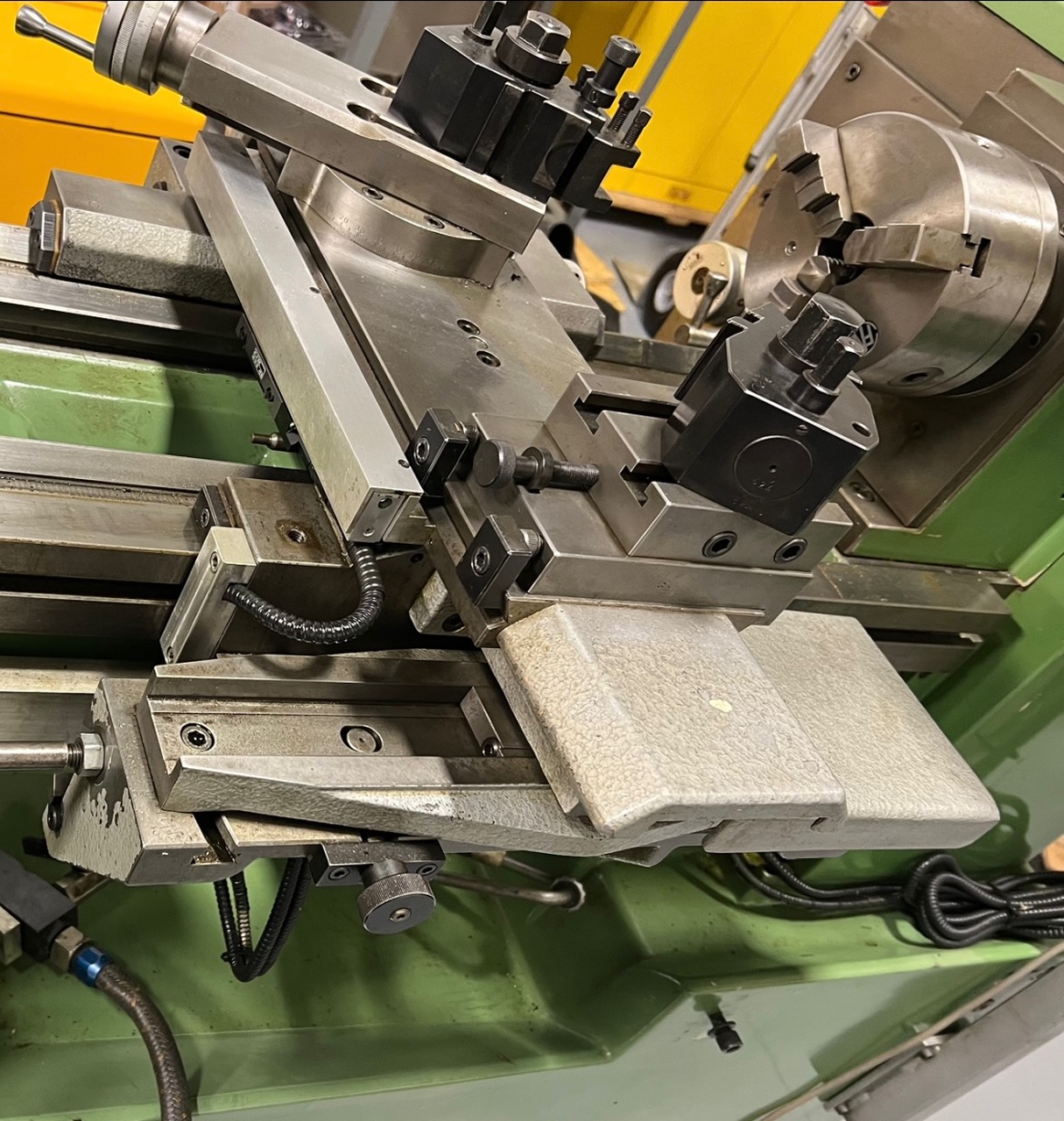

| Schaublin 150 tool room lathe, made in Switzerland. Latest model Heidenhain DRO. Tooling as shown. (Lista cabinet included) Features include starwheel 2 speed tail stock, rear tool block, Tripan (Swiss) tool holder system, lever type collet closer and B32 collets, steady rest, follow rest, various chucks and taper attachment. Rapid traverse.
Condition is excellent. Runs quiet and smooth. Backlash of cross is .008 compound .005. Input voltage 380, 3 phase. (New 230v to 380v transformer available for $650 with lathe purchase) Height of centres: -Above bed: 150 mm -Above tool slide: 33 mm Max. distance between centres: 600 mm Diameter admitted: -Above bed: 340 mm -Above carriage: 177 mm -In spindle bore: 40 mm -In B32 collet: 24 mm -In stationary or travelling steady: 100 mm Spindle nose: D 1-4" CAMLOCK Spindle internal taper: No 5 MORSE Spindle speeds, drive by variator: 55-3000 rpm Spindle speeds with headstock reduction unit engaged: 55-750 rpm Max. size of tools: 20x20 mm Traverse on bed: -Apron: 600 mm Longitudinal stroke: -Swivelling tool slide: 100 mm -1 turn of the handwheel is equivalent to a traverse of: 2 mm Transverse stroke: -Carriage cross slide: 180 mm -1 turn of the handwheel is equivalent to a traverse of: 3 mm Accuracy of reading on handwheel verniers: 0,01 mm 24 longitudinal and transverse normal feeds: 0,025-0,35 mm/rev 24 longitudinal and transverse fine feeds: 0,015-0,21 mm/rev 36 screwcutting feeds for metric pitches: 0,25-14 mm 36 screwcutting feeds for English pitches: 112-1½ tpi 38 screwcutting feeds for module pitches: 0,125-7,5 modules Longitudinal rapid automatic feed: 4,0 m/min Spindle internal taper: No 3 MORSE Longitudinal stroke of spindle: 120 mm Transverse adjustment: ±10 mm Main motor: -2,0/750 kW-rpm -4,0/3000 kW-rpm Rapid-feed motor: 0,35/1500 kW-rpm Coolant-system motor: 0,15-3000 kW-rpm Lubrication-system motor: 0,15-3000 kW-rpm Total electric power installed: 4,65 kW Capacity of coolant tank: 29 litres Weight 1250 kg |
