Quality Machine Tools Quality Machine Tools| Product Number | 1 |
| Manufacturer | Waytrain |
| Model | LX-250NC |
| Year | 2012 |
| Product | Horizontal automatic bandsaw |
| Description | Waytrain LX-250 automatic bandsaw |
| Price | $16,500 |
| Waytrain LX250NC CNC automatic bandsaw, very low hours, 2018 model. Prisine as new, both in appearance and running. Made in Taiwan.

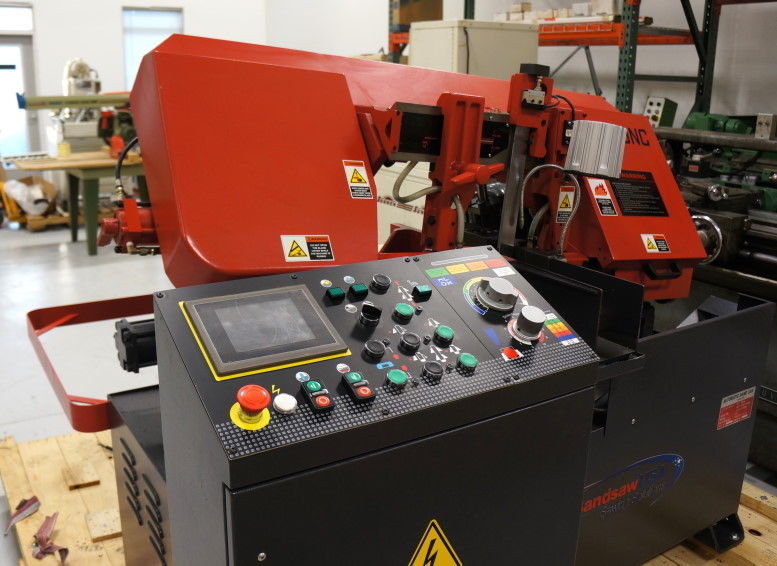

Features color touchscreen control, programmable digital readout of lengths, program storage, electronically variable speed (also programmable), hydraulic blade tension, broken blade detector, rotary screw type chip conveyor, integral coolant and adjustable coolant heater 3 hp, 230 volts, 3 phase. Net weight 3,153. Includes extra (new) Starrett blade and rolling chip bin. Note we also have another Waytrain saw, under the Jet name on eBay. The differences between these two is color vs mono touchscreen, linear vs rotary encoder on the shuttle and paint colors...otherwise the same saw. (as another a point of comparison, the Amada equivalent to this saw is now made in China, is not CNC and cost more) Unlike the Jet, this saw does not come with the bundle attachment or the extension table, but does come with the rolling chip bin. It does have a guard for the rear area the Jet does not have. SPECIFICATIONS Cutting Capacity, Round @ 90 degree (in.) 10 Cutting Capacity, Rectangle @ 90 degree (in./W x H) 10 x 12 Cutting Capacity, Bundle (in./W x H) 6 - 10 x 4 - 6 Residual Work (in.-min./L) 2 Feeding Stroke (in.-max.) 15-3/4 Stock Diameter (in.-min.) 3/8 No. Material Detecting Diameter (in.) 1-1/4 PLC-NC Programmable Cutting Quantities (program) 10 Blade Size (in.) 1 x 0.035 x 138 Blade Speed (ft/min.) 88 - 295 Blade Speed (m/min.) 27 - 90 Table Height (in.) 30 Coolant Tank Capacity (gal.) 10.5 Hydraulic Tank Capacity (gal.) 8 Work Load Capacity (lbs.) 3,306 Roller Stand Load Capacity (lbs.) 2,200 Main Motor 3 HP, 230V/3 Phase/60 Hz. Coolant Motor 1/6 HP Hydraulic Motor 1 HP Packaging Size (in./L x W x H) 90 x 87 x 75 Net Weight (lbs.) 3,153 STANDARD EQUIPMENT • Material Chip Cart • Halogen Work Lamp • Out of Stock Sensor • Full Stroke Vises • Power Driven Blade Cleaning Brush • Numerical Control Feed and Speed System • PLC Memorize Programmable Cutting, 10 Programs • Auger Type Hydraulic Automatic Chip Conveyor • Hydraulic Vertical Press Clamping, Nesting Fixture • Blade Breakage Detector • Inverter Blade Speed Control • Dual Vise Shuttle System • Saw Frame Work Height Selector • Hydraulic Blade Tension • Vise Pressure Regulator • Complete Coolant System |
